ISMC 175 Weight, Dimensions and IS 808 Properties
ISMC 175 weighs 19.6 kg per metre as per IS 808:1989.
- One 6-metre length weighs 117.6 kg · one 12-metre length weighs 235.2 kg

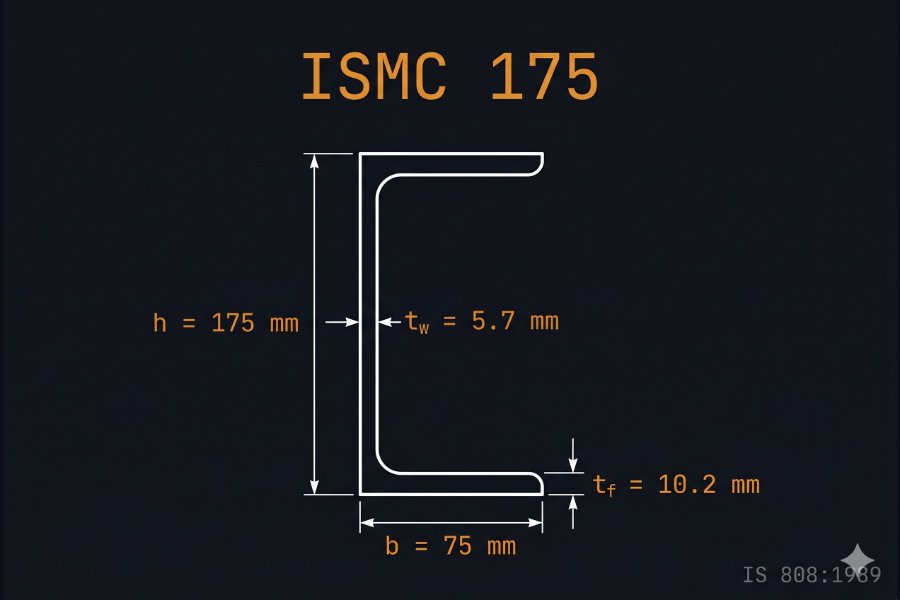

- Web height 175 mm · flange width 75 mm · web thickness 5.7 mm
- Cross-sectional area 24.80 cm² · Ixx = 1261.5 cm⁴
ISMC 175 is a medium channel in IS 808:1989. At 19.6 kg/m with a 175 mm web and 75 mm flange, it bridges the gap between the widely stocked ISMC 150 and ISMC 200 and is used where slightly greater depth is needed without stepping up to the heavier 200 mm section.
ISMC 175 Weight Calculator
Enter the total length in metres to calculate weight.
ISMC 175 — Weight Calculator
IS 808:1989 Dimensions and Sectional Properties
| Property | Symbol | Unit | Value |
|---|---|---|---|
| Web height | h | mm | 175 |
| Flange width | b | mm | 75 |
| Web thickness | tw | mm | 5.7 |
| Flange thickness | tf | mm | 9.2 |
| Cross-sectional area | A | cm² | 24.80 |
| Mass per metre | — | kg/m | 19.6 |
| Moment of inertia (x–x) | Ixx | cm⁴ | 1261.5 |
| Moment of inertia (y–y) | Iyy | cm⁴ | 98.6 |
| Elastic section modulus (x–x) | Zxx | cm³ | 144.2 |
| Elastic section modulus (y–y) | Zyy | cm³ | 17.8 |
| Radius of gyration (x–x) | rxx | cm | 7.13 |
| Radius of gyration (y–y) | ryy | cm | 1.99 |
Dimensions and properties as per IS 808:1989 (reaffirmed 2021). Mass tolerance: ±2.5% per piece per IS 808.
Common Applications of ISMC 175
ISMC 175 is used for back-to-back channel columns in light prefabricated structures, intermediate floor beams in mezzanines, gantry runway channels for 2–3 tonne EOT cranes, and heavy stair stringers. Like ISMC 225, this is a less commonly stocked size — verify availability with your supplier before specifying. SAIL and JSW Steel produce ISMC 175 in IS 2062 E250 grade.
Worked Example
A structural fabricator in Hyderabad needs 12 back-to-back ISMC 175 column pairs (24 channels), each 3.0 m tall, for a small equipment enclosure. Total length = 24 × 3.0 = 72 m. Weight = 72 × 19.6 = 1,411.2 kg (1.411 tonnes). At a market rate of ₹58,200 per tonne (Hyderabad, May 2026), the material cost is approximately ₹82,130 before fabrication.
Related ISMC Sections
Compare with adjacent sizes: ISMC 150 (16.8 kg/m) · ISMC 200 (22.1 kg/m). For all ISMC sizes see the Section Reference Library →
Frequently Asked Questions
What is the weight of ISMC 175 per metre?
ISMC 175 weighs 19.6 kg per metre as specified in IS 808:1989. For a standard 6-metre length, the total weight is 117.6 kg. For a 12-metre length, total weight is 235.2 kg.
ISMC 175 ka weight per meter kitna hota hai?
IS 808:1989 standard ke according, ISMC 175 ka weight 19.6 kg/m hota hai. 6 metre ki ek length ka total weight 117.6 kg hoga. Zyada accurate calculation ke liye upar diya gaya calculator use karein.
What are the dimensions of ISMC 175?
ISMC 175 per IS 808:1989 has a web height of 175 mm, flange width of 75 mm, web thickness of 5.7 mm, and flange thickness of 9.2 mm. The cross-sectional area is 24.80 cm².
