ISA 150×100×10 Weight, Dimensions and IS 808 Properties
ISA 150×100×10 weighs 18.8 kg per metre as per IS 808:1989.
- One 6-metre length weighs 112.8 kg · one 12-metre length weighs 225.6 kg
- Long leg 150 mm · short leg 100 mm · thickness 10 mm · area 24.0 cm²
- Maximum principal moment of inertia Iuu = 635.3 cm⁴
ISA 150×100×10 is a standard unequal-leg angle in IS 808:1989. At 18.8 kg/m with a 150 mm long leg and 100 mm short leg, it is used for heavy structural bracing in multi-storey industrial frames, column-base gusset connections, heavy truss chord splice angles, and staircase main stringers in heavy industrial buildings.
ISA 150×100×10 Weight Calculator
Enter the total length in metres to calculate weight.
ISA 150×100×10 — Weight Calculator

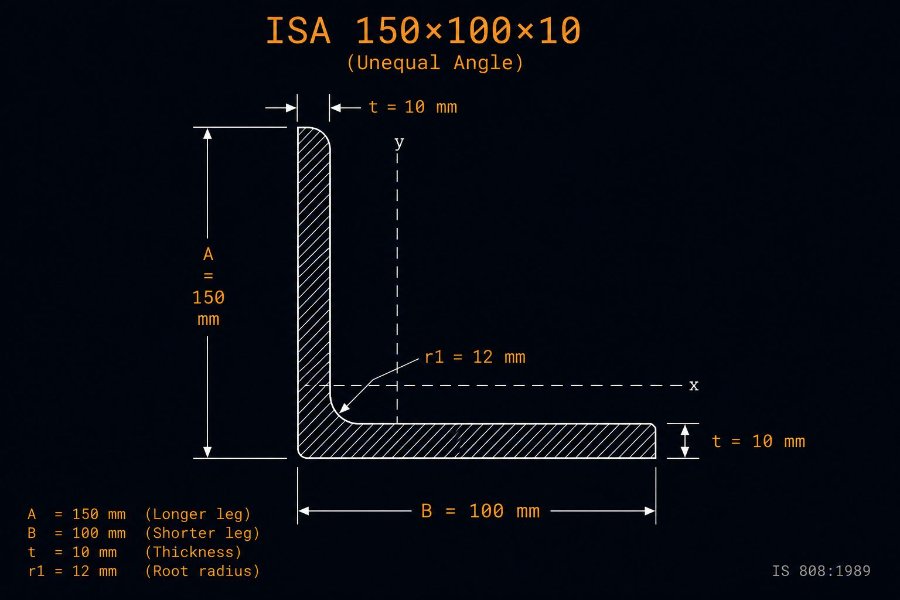

IS 808:1989 Dimensions and Sectional Properties
| Property | Symbol | Unit | Value |
|---|---|---|---|
| Long leg | A | mm | 150 |
| Short leg | B | mm | 100 |
| Thickness | t | mm | 10 |
| Cross-sectional area | A | cm² | 24.0 |
| Mass per metre | — | kg/m | 18.8 |
| Centroid from back of long leg | Cxx | cm | 3.36 |
| Centroid from back of short leg | Cyy | cm | 1.96 |
| Moment of inertia (x–x) | Ixx | cm⁴ | 560.5 |
| Moment of inertia (y–y) | Iyy | cm⁴ | 157.5 |
| Moment of inertia (u–u, max principal) | Iuu | cm⁴ | 635.3 |
| Moment of inertia (v–v, min principal) | Ivv | cm⁴ | 82.7 |
| Elastic section modulus (x–x) | Zxx | cm³ | 54.35 |
| Elastic section modulus (y–y) | Zyy | cm³ | 21.97 |
| Radius of gyration (u–u) | ruu | cm | 5.14 |
| Radius of gyration (v–v) | rvv | cm | 1.86 |
| Tangent of principal axis angle | tan α | — | 0.412 |
Dimensions and properties as per IS 808:1989 (reaffirmed 2021). x–x axis is parallel to the long leg; y–y axis is parallel to the short leg; u–u is the maximum principal axis at angle α to x–x. Mass tolerance: ±3% per piece per IS 808.
Common Applications of ISA 150×100×10
ISA 150×100×10 is used for heavy structural bracing in multi-storey industrial frames, column-base gusset connections, heavy truss chord splice angles, and staircase main stringers in heavy industrial buildings. General steel merchants and angle stockists carry this size in IS 2062 E250 grade in 6 m and 12 m lengths. JSPL, SAIL, and RINL (Vizag Steel) all roll this designation to IS 808:1989 as standard stock.
Worked Example
A fabricator in Chennai needs 6 column-base bracing angles on a multi-storey industrial frame using ISA 150×100×10, each 2500 mm long. Total length = 6 × 2.5 = 15.0 m. Weight = 15.0 × 18.8 = 282.0 kg. At ₹63,000 per tonne (Chennai, May 2026), material cost is approximately ₹17,766 before cutting charges.
Related ISA Unequal Angle Sections
Compare with adjacent sizes: ISA 125×75×10 (14.9 kg/m) · ISA 150×100×12 (22.4 kg/m). For all ISA unequal angles see the Section Reference Library →
Frequently Asked Questions
What is the weight of ISA 150×100×10 per metre?
ISA 150×100×10 weighs 18.8 kg per metre as specified in IS 808:1989. For a standard 6-metre length, the total weight is 112.8 kg. For a 12-metre length, total weight is 225.6 kg.
ISA 150×100×10 ka weight per meter kitna hota hai?
IS 808:1989 standard ke according, ISA 150×100×10 ka weight 18.8 kg/m hota hai. 6 metre ki ek length ka total weight 112.8 kg hoga. Zyada accurate calculation ke liye upar diya gaya calculator use karein.
What are the dimensions of ISA 150×100×10?
ISA 150×100×10 per IS 808:1989 has a long leg of 150 mm, short leg of 100 mm, thickness of 10 mm, and cross-sectional area of 24.0 cm².
