How Many Pipes Fit in a Truck — Load Calculator (LCV, MXL, Trailer)

How many pipes fit in a truck is a question every site manager and procurement officer faces before placing a steel order. The answer depends on the vehicle deck dimensions, the pipe OD from IS:1239, the stacking method, and the vehicle's rated GVW. This page provides pre-calculated tables for the three most common Indian commercial vehicles — Tata 407 LCV, Tata 709 MXL, and a standard 20-ft trailer — for all IS:1239 MS pipe sizes from 15 NB to 150 NB in the 6-metre length.

Vehicle Deck Dimensions — The Three Standard Vehicles

Indian commercial vehicle deck dimensions vary by body builder, but these are the standard usable deck dimensions consistently used in steel yard logistics across India:

Deck dimensions are standard usable body dimensions — actual dimensions vary by body builder. Always verify with your transporter. GVW limits are per MV Act registration; overloading is an offence under MV Act Section 194.

How to Calculate Pipes Per Truck — The Formula

The calculation treats each pipe cross-section as a circle of diameter equal to the pipe OD. For a flat deck, the number of pipes that fit per layer is:

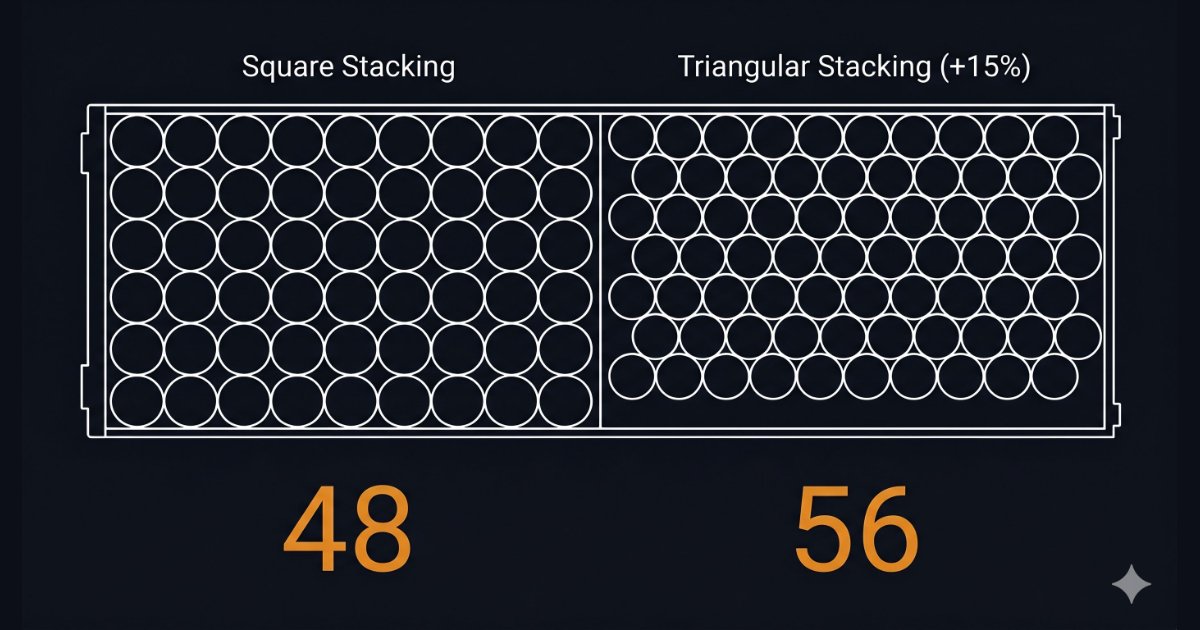

Square stacking:
Pieces per layer = floor(Deck width ÷ OD) × floor(Deck length ÷ Pipe length)

Triangular stacking (alternate rows offset):
Row spacing = OD × 0.866 (= OD × sin 60°)
Rows = floor((Deck width − OD) ÷ (OD × 0.866)) + 1

OD

Outside diameter of the pipe in metres — from IS:1239 (Part 1):2004 for the relevant NB size.

Deck width / length

Usable vehicle deck dimensions in metres — see vehicle table above.

Pipe length

Standard 6-metre random length for IS:1239 MS pipe.

floor()

Round down to the nearest whole number — you cannot fit a fraction of a pipe.

0.866

sin(60°) — the row-height factor for triangular stacking, which fits approximately 15% more pipes per layer than square stacking.

Pipes Per Truck — Pre-Calculated Table (IS:1239 Medium Class, 6 m Lengths)

The table below shows pieces per single square-stacked layer and estimated bundle weight for each NB size across all three vehicle types. Compare the bundle weight column against each vehicle's rated payload before finalising your load plan.

Piece counts are single-layer square stacking. OD and Medium Class kg/m values per IS:1239 (Part 1):2004. Weight per piece = kg/m × 6 m. Bundle weight = pieces × weight per piece. Bold check: if bundle weight exceeds vehicle payload, reduce pieces accordingly. Numbers are for planning purposes only — actual load plans must be verified with your transporter.

Worked Example — 200 Pieces of 50 NB Medium Class, 6 m

A fabrication shop needs to receive 200 pieces of 50 NB Medium Class MS pipe (6 m each) from a stockist 80 km away. The choice is between a Tata 407 LCV or a Tata 709 MXL. Which vehicle, and how many trips?

Weight per piece: 5.03 kg/m × 6 m = 30.18 kg

Total order weight: 200 × 30.18 = 6,036 kg

Tata 407 LCV (payload 1,500 kg):
Pieces per trip (weight-limited) = floor(1,500 ÷ 30.18) = 49 pieces
Trips needed = ceil(200 ÷ 49) = 5 trips

Tata 709 MXL (payload 4,750 kg):
Pieces per trip (weight-limited) = floor(4,750 ÷ 30.18) = 157 pieces
Deck space check: 220 pieces fit per layer (table) — but weight of 157 pieces = 4,737 kg (within payload).
Trips needed = ceil(200 ÷ 157) = 2 trips

Verdict: Book the Tata 709 MXL for 2 trips instead of 5 LCV trips. At ₹4,000–5,000 per trip, this saves approximately ₹12,000–15,000 in freight on one order. Ek truck mein kitni pipes aa sakti hain — yeh simple calculation freight cost planning mein badi savings de sakti hai.

To calculate the exact pipe weight for any size and class before placing your order, use our free Metal Weight Calculator. A full IS:1239 reference with all three class weights is in our MS Pipe Weight Per Metre article.
