ISA 200×200×18 Weight, Dimensions and IS 808 Properties
ISA 200×200×18 weighs 53.8 kg per metre as per IS 808:1989.
- One 6-metre length weighs 322.8 kg · one 12-metre length weighs 645.6 kg
- Leg 200 mm × thickness 18 mm · root radius 18.0 mm
- Cross-sectional area 68.5 cm² · Iuu = 2251.0 cm⁴
ISA 200×200×18 is a very large heavy structural equal-leg angle in IS 808:1989. At 53.8 kg/m it provides 19% more cross-sectional area than ISA 200×200×15 and is used for the most heavily loaded primary structural members in major heavy industrial and infrastructure projects.
ISA 200×200×18 Weight Calculator
Enter the total length in metres to calculate weight.
ISA 200×200×18 — Weight Calculator

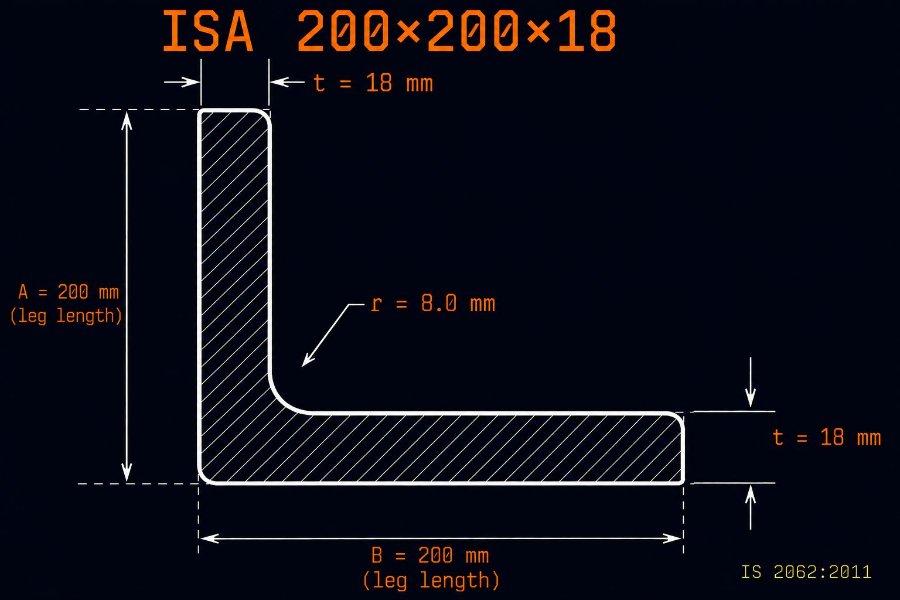

IS 808:1989 Dimensions and Sectional Properties
| Property | Symbol | Unit | Value |
|---|---|---|---|
| Leg length | A | mm | 200 |
| Thickness | t | mm | 18 |
| Root radius | r1 | mm | 18.0 |
| Cross-sectional area | A | cm² | 68.5 |
| Mass per metre | — | kg/m | 53.8 |
| Centroid distance (Cxx = Cyy) | Cxx | cm | 4.87 |
| Moment of inertia (u–u, max) | Iuu | cm⁴ | 2251.0 |
| Moment of inertia (v–v, min) | Ivv | cm⁴ | 583.4 |
| Elastic section modulus (u–u) | Zuu | cm³ | 162.7 |
| Radius of gyration (u–u) | ruu | cm | 5.73 |
| Radius of gyration (v–v) | rvv | cm | 2.92 |
Dimensions and properties as per IS 808:1989 (Reaffirmed 2001). Mass tolerance: ±3% per piece as per IS 808. u–u is the major principal axis at 45° to both legs; v–v is the minor principal axis. Zvv is not published in IS 808:1989 for angle sections.
Common Applications of ISA 200×200×18
ISA 200×200×18 is used for the most heavily loaded primary chord members in very large span industrial trusses, compound column sections under maximum axial load in major infrastructure frames, primary heavy wind bracing under extreme lateral loads, and major structural connection nodes in heavy industrial plants. Available from JSPL and Tata Steel.
Worked Example
A structural engineer in Delhi specifies ISA 200×200×18 for 4 primary chord members, each 6 m long, for a 55 m span very heavily loaded industrial crane truss. Total length = 4 × 6 = 24 m. Weight = 24 × 53.8 = 1,291.2 kg (1.291 tonnes). At ₹62,000 per tonne (Delhi, May 2026), material cost is approximately ₹80,054.
Related ISA Equal Angle Sections
Compare with adjacent sizes: ISA 200×200×15 (45.3 kg/m) · ISA 200×200×25 (73.6 kg/m). For all ISA equal angles see the Section Reference Library →
Frequently Asked Questions
What is the weight of ISA 200×200×18 per metre?
ISA 200×200×18 weighs 53.8 kg per metre as specified in IS 808:1989. For a standard 6-metre length, the total weight is 322.8 kg. For a 12-metre length, total weight is 645.6 kg.
ISA 200×200×18 ka weight per meter kitna hota hai?
IS 808:1989 standard ke according, ISA 200×200×18 ka weight 53.8 kg/m hota hai. 6 metre ki ek length ka total weight 322.8 kg hoga. Zyada accurate calculation ke liye upar diya gaya calculator use karein.
What are the dimensions of ISA 200×200×18?
ISA 200×200×18 per IS 808:1989 has a leg length of 200 mm, thickness of 18 mm, and root radius of 18.0 mm. The cross-sectional area is 68.50 cm².
