ISMC 100 Weight, Dimensions and IS 808 Properties
ISMC 100 weighs 9.2 kg per metre as per IS 808:1989.
- One 6-metre length weighs 55.2 kg · one 12-metre length weighs 110.4 kg
- Web height 100 mm · flange width 50 mm · web thickness 4.7 mm
- Cross-sectional area 11.70 cm² · Ixx = 139.9 cm⁴
ISMC 100 is a light channel section in IS 808:1989. At 9.2 kg/m with a 100 mm web height, it is commonly used for purlin framing in light industrial sheds, cable tray ladders, door and window lintels, and secondary framing where a compact C-section with predictable bending capacity is required.
ISMC 100 Weight Calculator
Enter the total length in metres to calculate weight.
ISMC 100 — Weight Calculator

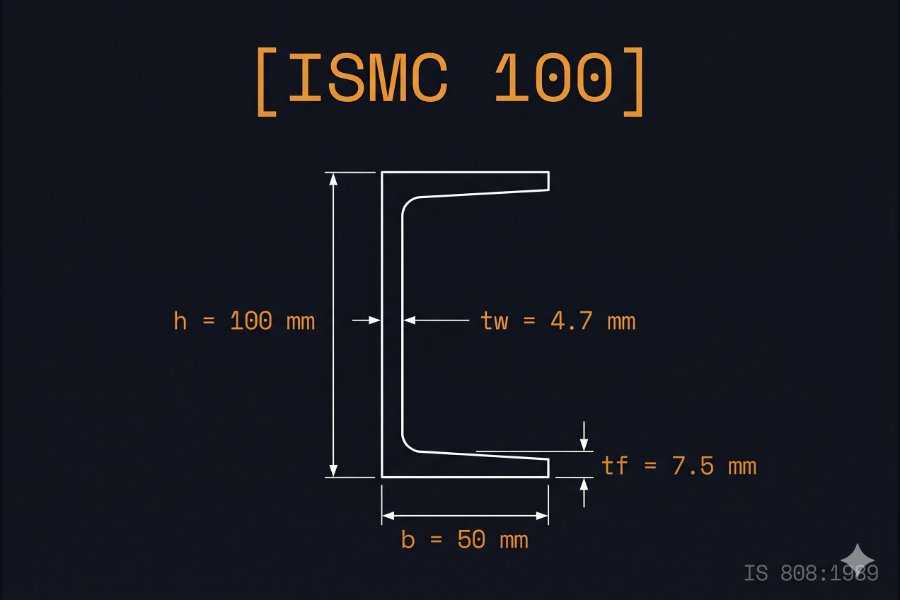

IS 808:1989 Dimensions and Sectional Properties
| Property | Symbol | Unit | Value |
|---|---|---|---|
| Web height | h | mm | 100 |
| Flange width | b | mm | 50 |
| Web thickness | tw | mm | 4.7 |
| Flange thickness | tf | mm | 7.5 |
| Cross-sectional area | A | cm² | 11.70 |
| Mass per metre | — | kg/m | 9.2 |
| Moment of inertia (x–x) | Ixx | cm⁴ | 139.9 |
| Moment of inertia (y–y) | Iyy | cm⁴ | 19.7 |
| Elastic section modulus (x–x) | Zxx | cm³ | 28.0 |
| Elastic section modulus (y–y) | Zyy | cm³ | 5.6 |
| Radius of gyration (x–x) | rxx | cm | 3.46 |
| Radius of gyration (y–y) | ryy | cm | 1.3 |
Dimensions and properties as per IS 808:1989 (reaffirmed 2021). Mass tolerance: ±2.5% per piece per IS 808.
Common Applications of ISMC 100
ISMC 100 is widely used for purlins in light industrial and agricultural buildings, lintels over openings up to 2 m, secondary beams in mezzanine floors, and cable tray supports in medium-duty electrical installations. Both SAIL and JSW Steel roll ISMC 100 in IS 2062 E250 grade as a standard stocked section across India.
Worked Example
A contractor in Ahmedabad needs 30 lintels of ISMC 100, each 1.5 m long, for a row of shop fronts. Total length = 30 × 1.5 = 45 m. Weight = 45 × 9.2 = 414 kg (0.414 tonnes). At a market rate of ₹57,500 per tonne (Ahmedabad, May 2026), the material cost is approximately ₹23,805 before fabrication and delivery.
Related ISMC Sections
Compare with adjacent sizes: ISMC 75 (6.1 kg/m) · ISMC 125 (13.1 kg/m). For all ISMC sizes see the Section Reference Library →
Frequently Asked Questions
What is the weight of ISMC 100 per metre?
ISMC 100 weighs 9.2 kg per metre as specified in IS 808:1989. For a standard 6-metre length, the total weight is 55.2 kg. For a 12-metre length, total weight is 110.4 kg.
ISMC 100 ka weight per meter kitna hota hai?
IS 808:1989 standard ke according, ISMC 100 ka weight 9.2 kg/m hota hai. 6 metre ki ek length ka total weight 55.2 kg hoga. Zyada accurate calculation ke liye upar diya gaya calculator use karein.
What are the dimensions of ISMC 100?
ISMC 100 per IS 808:1989 has a web height of 100 mm, flange width of 50 mm, web thickness of 4.7 mm, and flange thickness of 7.5 mm. The cross-sectional area is 11.70 cm².
