ISA 200×200×25 Weight, Dimensions and IS 808 Properties
ISA 200×200×25 weighs 73.6 kg per metre as per IS 808:1989.
- One 6-metre length weighs 441.6 kg · one 12-metre length weighs 883.2 kg
- Leg 200 mm × thickness 25 mm · root radius 18.0 mm
- Cross-sectional area 93.75 cm² · Iuu = 2935.0 cm⁴
ISA 200×200×25 is the largest and heaviest standard equal-leg angle in IS 808:1989. At 73.6 kg/m with a 200 mm leg and 25 mm thickness it is reserved for the most extreme structural applications in heavy industrial plants, large infrastructure projects, and critical connection nodes.
ISA 200×200×25 Weight Calculator
Enter the total length in metres to calculate weight.
ISA 200×200×25 — Weight Calculator

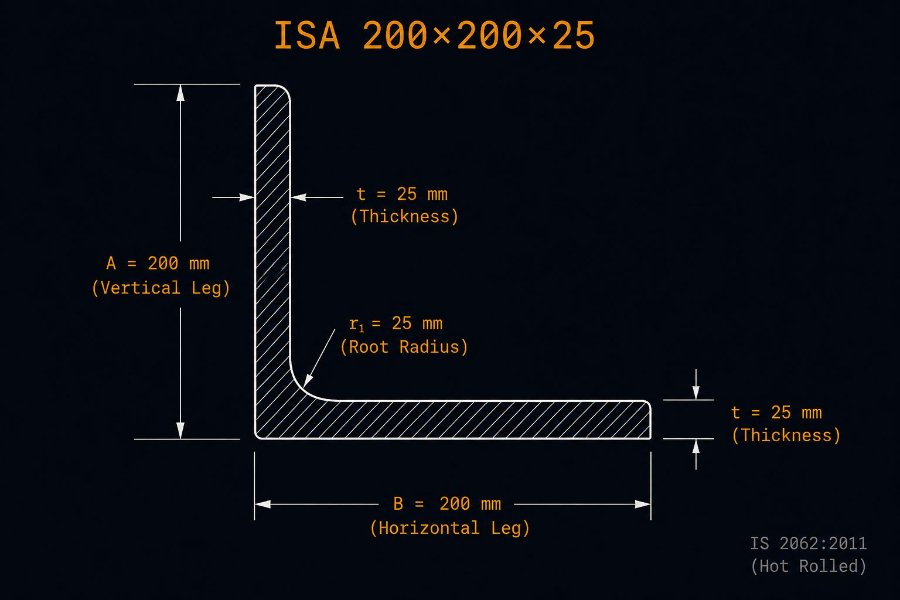

IS 808:1989 Dimensions and Sectional Properties
| Property | Symbol | Unit | Value |
|---|---|---|---|
| Leg length | A | mm | 200 |
| Thickness | t | mm | 25 |
| Root radius | r1 | mm | 18.0 |
| Cross-sectional area | A | cm² | 93.75 |
| Mass per metre | — | kg/m | 73.6 |
| Centroid distance (Cxx = Cyy) | Cxx | cm | 5.14 |
| Moment of inertia (u–u, max) | Iuu | cm⁴ | 2935.0 |
| Moment of inertia (v–v, min) | Ivv | cm⁴ | 756.3 |
| Elastic section modulus (u–u) | Zuu | cm³ | 218.3 |
| Radius of gyration (u–u) | ruu | cm | 5.6 |
| Radius of gyration (v–v) | rvv | cm | 2.84 |
Dimensions and properties as per IS 808:1989 (Reaffirmed 2001). Mass tolerance: ±3% per piece as per IS 808. u–u is the major principal axis at 45° to both legs; v–v is the minor principal axis. Zvv is not published in IS 808:1989 for angle sections.
Common Applications of ISA 200×200×25
ISA 200×200×25 is used for the most heavily loaded compound column sections in large infrastructure and heavy industrial frames, critical connection gusset and splice plates, large built-up girder chord members in very heavy process plant structures, and primary members in extreme-load applications. Available from JSPL and Tata Steel to special order.
Worked Example
A structural engineer in Mumbai specifies ISA 200×200×25 for 4 primary chord members, each 6 m long, for a very heavy 55 m span process plant truss requiring maximum section capacity. Total length = 4 × 6 = 24 m. Weight = 24 × 73.6 = 1,766.4 kg (1.766 tonnes). At ₹62,000 per tonne (Mumbai, May 2026), material cost is approximately ₹109,517.
