ISA 200×200×15 Weight, Dimensions and IS 808 Properties
ISA 200×200×15 weighs 45.3 kg per metre as per IS 808:1989.
- One 6-metre length weighs 271.8 kg · one 12-metre length weighs 543.6 kg
- Leg 200 mm × thickness 15 mm · root radius 18.0 mm
- Cross-sectional area 57.69 cm² · Iuu = 1924.0 cm⁴
ISA 200×200×15 is one of the largest standard equal-leg angles in IS 808:1989. At 45.3 kg/m with a 200 mm leg it is used for the heaviest primary structural members in major industrial structures, large crane gantry trusses, and compound column sections in large infrastructure projects.
ISA 200×200×15 Weight Calculator
Enter the total length in metres to calculate weight.
ISA 200×200×15 — Weight Calculator

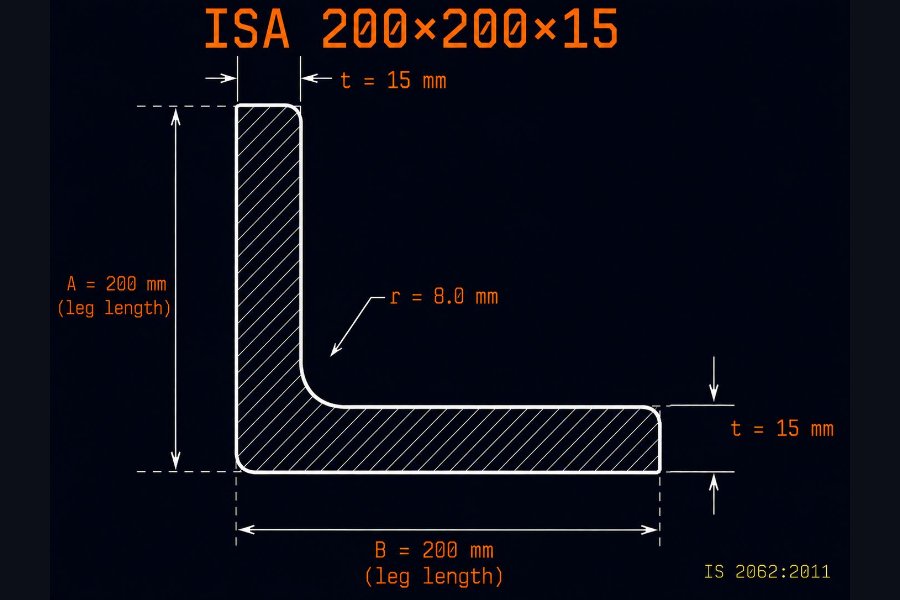

IS 808:1989 Dimensions and Sectional Properties
| Property | Symbol | Unit | Value |
|---|---|---|---|
| Leg length | A | mm | 200 |
| Thickness | t | mm | 15 |
| Root radius | r1 | mm | 18.0 |
| Cross-sectional area | A | cm² | 57.69 |
| Mass per metre | — | kg/m | 45.3 |
| Centroid distance (Cxx = Cyy) | Cxx | cm | 4.72 |
| Moment of inertia (u–u, max) | Iuu | cm⁴ | 1924.0 |
| Moment of inertia (v–v, min) | Ivv | cm⁴ | 499.6 |
| Elastic section modulus (u–u) | Zuu | cm³ | 136.9 |
| Radius of gyration (u–u) | ruu | cm | 5.78 |
| Radius of gyration (v–v) | rvv | cm | 2.94 |
Dimensions and properties as per IS 808:1989 (Reaffirmed 2001). Mass tolerance: ±3% per piece as per IS 808. u–u is the major principal axis at 45° to both legs; v–v is the minor principal axis. Zvv is not published in IS 808:1989 for angle sections.
Common Applications of ISA 200×200×15
ISA 200×200×15 is used for primary chord members in 45–55 m span very heavy industrial trusses, built-up compound column sections in large infrastructure and industrial frames, heavy crane gantry girder chord members, primary heavy wind bracing under extreme lateral loads, and major structural connection nodes. Available from JSPL and Tata Steel.
Worked Example
A structural engineer in Mumbai specifies ISA 200×200×15 for 6 primary chord members, each 6 m long, for a 50 m span heavy crane truss in a steel works. Total length = 6 × 6 = 36 m. Weight = 36 × 45.3 = 1,630.8 kg (1.631 tonnes). At ₹62,000 per tonne (Mumbai, May 2026), material cost is approximately ₹101,110.
Related ISA Equal Angle Sections
Compare with adjacent sizes: ISA 175×175×15 (39.4 kg/m) · ISA 200×200×18 (53.8 kg/m). For all ISA equal angles see the Section Reference Library →
Frequently Asked Questions
What is the weight of ISA 200×200×15 per metre?
ISA 200×200×15 weighs 45.3 kg per metre as specified in IS 808:1989. For a standard 6-metre length, the total weight is 271.8 kg. For a 12-metre length, total weight is 543.6 kg.
ISA 200×200×15 ka weight per meter kitna hota hai?
IS 808:1989 standard ke according, ISA 200×200×15 ka weight 45.3 kg/m hota hai. 6 metre ki ek length ka total weight 271.8 kg hoga. Zyada accurate calculation ke liye upar diya gaya calculator use karein.
What are the dimensions of ISA 200×200×15?
ISA 200×200×15 per IS 808:1989 has a leg length of 200 mm, thickness of 15 mm, and root radius of 18.0 mm. The cross-sectional area is 57.69 cm².
Need weight for a different section type? Our free Metal Weight Calculator covers all IS 808 sections, pipes, bars, and hollow sections.
Try the Free Metal Weight Calculator →
