ISA 200×100×10 Weight, Dimensions and IS 808 Properties
ISA 200×100×10 weighs 22.8 kg per metre as per IS 808:1989.
- One 6-metre length weighs 136.8 kg · one 12-metre length weighs 273.6 kg
- Long leg 200 mm · short leg 100 mm · thickness 10 mm · area 29.0 cm²
- Maximum principal moment of inertia Iuu = 1397.8 cm⁴
ISA 200×100×10 is a standard unequal-leg angle in IS 808:1989. At 22.8 kg/m with a 200 mm long leg and 100 mm short leg, it is used for heavy structural bracing members in large-span industrial buildings, column-base gusset angles, crane-runway bracket connections, and primary truss chord angles in long-span roof structures.
ISA 200×100×10 Weight Calculator
Enter the total length in metres to calculate weight.
ISA 200×100×10 — Weight Calculator

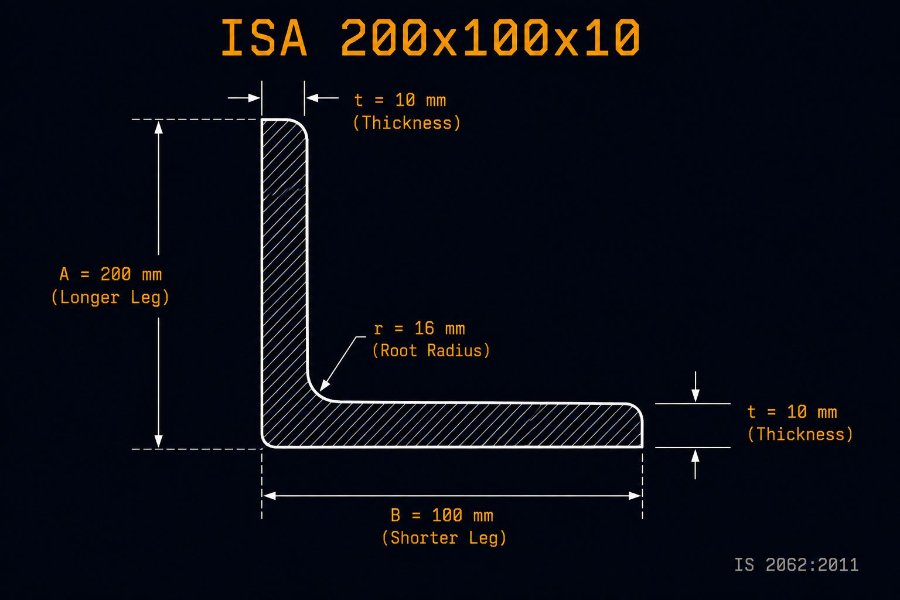

IS 808:1989 Dimensions and Sectional Properties
| Property | Symbol | Unit | Value |
|---|---|---|---|
| Long leg | A | mm | 200 |
| Short leg | B | mm | 100 |
| Thickness | t | mm | 10 |
| Cross-sectional area | A | cm² | 29.0 |
| Mass per metre | — | kg/m | 22.8 |
| Centroid from back of long leg | Cxx | cm | 4.36 |
| Centroid from back of short leg | Cyy | cm | 1.64 |
| Moment of inertia (x–x) | Ixx | cm⁴ | 1318.0 |
| Moment of inertia (y–y) | Iyy | cm⁴ | 177.0 |
| Moment of inertia (u–u, max principal) | Iuu | cm⁴ | 1397.8 |
| Moment of inertia (v–v, min principal) | Ivv | cm⁴ | 97.2 |
| Elastic section modulus (x–x) | Zxx | cm³ | 96.36 |
| Elastic section modulus (y–y) | Zyy | cm³ | 22.85 |
| Radius of gyration (u–u) | ruu | cm | 6.94 |
| Radius of gyration (v–v) | rvv | cm | 1.83 |
| Tangent of principal axis angle | tan α | — | 0.195 |
Dimensions and properties as per IS 808:1989 (reaffirmed 2021). x–x axis is parallel to the long leg; y–y axis is parallel to the short leg; u–u is the maximum principal axis at angle α to x–x. Mass tolerance: ±3% per piece per IS 808.
Common Applications of ISA 200×100×10
ISA 200×100×10 is used for heavy structural bracing members in large-span industrial buildings, column-base gusset angles, crane-runway bracket connections, and primary truss chord angles in long-span roof structures. General steel merchants and angle stockists carry this size in IS 2062 E250 grade in 6 m and 12 m lengths. JSPL, SAIL, and RINL (Vizag Steel) all roll this designation to IS 808:1989 as standard stock.
Worked Example
A fabricator in Surat needs 4 primary truss chord bracing on a 50 m × 100 m warehouse using ISA 200×100×10, each 4000 mm long. Total length = 4 × 4.0 = 16.0 m. Weight = 16.0 × 22.8 = 364.8 kg. At ₹63,000 per tonne (Surat, May 2026), material cost is approximately ₹22,982 before cutting charges.
Related ISA Unequal Angle Sections
Compare with adjacent sizes: ISA 150×115×10 (20.0 kg/m) · ISA 200×100×12 (27.1 kg/m). For all ISA unequal angles see the Section Reference Library →
Frequently Asked Questions
What is the weight of ISA 200×100×10 per metre?
ISA 200×100×10 weighs 22.8 kg per metre as specified in IS 808:1989. For a standard 6-metre length, the total weight is 136.8 kg. For a 12-metre length, total weight is 273.6 kg.
ISA 200×100×10 ka weight per meter kitna hota hai?
IS 808:1989 standard ke according, ISA 200×100×10 ka weight 22.8 kg/m hota hai. 6 metre ki ek length ka total weight 136.8 kg hoga. Zyada accurate calculation ke liye upar diya gaya calculator use karein.
What are the dimensions of ISA 200×100×10?
ISA 200×100×10 per IS 808:1989 has a long leg of 200 mm, short leg of 100 mm, thickness of 10 mm, and cross-sectional area of 29.0 cm².
