ISMB 200 Weight, Dimensions and IS 808 Properties
ISMB 200 weighs 25.4 kg per metre as per IS 808:1989.
- One 6-metre length weighs 152.4 kg · one 12-metre length weighs 304.8 kg
- Overall depth 200 mm · flange width 100 mm · web thickness 5.7 mm
- Cross-sectional area 3,230 mm² · Ixx = 2,235.4 cm⁴
ISMB 200 is one of the most widely used medium beam sizes in Indian construction. At 25.4 kg/m with a 200 × 100 mm cross-section, it is a standard choice for floor beams, roof structures, industrial platforms, and crane runway girders up to moderate spans.
ISMB 200 Weight Calculator
Enter the total length in metres to calculate weight.
ISMB 200 — Weight Calculator

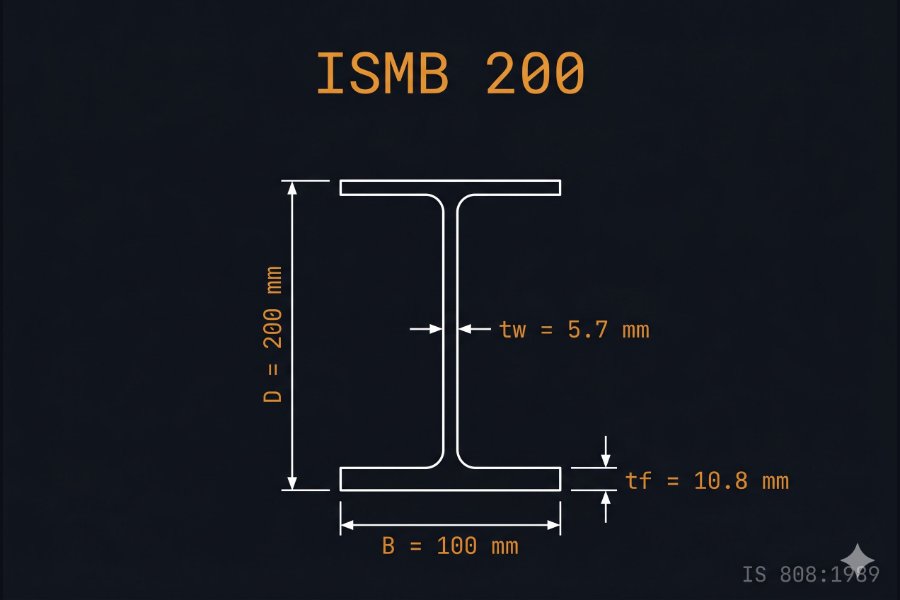

IS 808:1989 Dimensions and Sectional Properties
| Property | Symbol | Unit | Value |
|---|---|---|---|
| Overall depth | D | mm | 200 |
| Flange width | B | mm | 100 |
| Web thickness | tw | mm | 5.7 |
| Flange thickness | tf | mm | 10.8 |
| Cross-sectional area | A | mm² | 3,230 |
| Mass per metre | — | kg/m | 25.4 |
| Moment of inertia (x–x) | Ixx | cm⁴ | 2,235.4 |
| Moment of inertia (y–y) | Iyy | cm⁴ | 150.0 |
| Elastic section modulus (x–x) | Zxx | cm³ | 223.5 |
| Elastic section modulus (y–y) | Zyy | cm³ | 29.5 |
| Radius of gyration (x–x) | rxx | cm | 8.32 |
| Radius of gyration (y–y) | ryy | cm | 2.16 |
Dimensions and properties as per IS 808:1989 (reaffirmed 2021). Mass tolerance: ±2.5% per piece per IS 808.
Common Applications of ISMB 200
ISMB 200 is a go-to section for mezzanine primary beams, industrial shed rafters, and staircase stringers requiring spans of 3–5 m. Its 100 mm flange width makes welded and bolted connections straightforward. SAIL, Tata Steel, and JSW Steel carry ISMB 200 as permanent stock in IS 2062 E250 and E300 grades.
Worked Example
A steel fabricator in Mumbai requires 20 floor beams of ISMB 200 each 5.5 m long for a mezzanine storage level. Total length = 20 × 5.5 = 110 m. Weight = 110 × 25.4 = 2,794 kg (2.794 tonnes). At ₹58,000 per tonne (May 2026), estimated material cost is approximately ₹1,62,050.
Related ISMB Sections
Compare with adjacent sizes: ISMB 175 (19.6 kg/m) · ISMB 225 (31.2 kg/m). For all ISMB sizes see the Section Reference Library →
Frequently Asked Questions
What is the weight of ISMB 200 per metre?
ISMB 200 weighs 25.4 kg per metre as specified in IS 808:1989. For a standard 6-metre length, the total weight is 152.4 kg. For a 12-metre length, total weight is 304.8 kg.
ISMB 200 ka weight per meter kitna hota hai?
IS 808:1989 standard ke according, ISMB 200 ka weight 25.4 kg/m hota hai. 6 metre ki ek length ka total weight 152.4 kg hoga. Zyada accurate calculation ke liye upar diya gaya calculator use karein.
What are the dimensions of ISMB 200?
ISMB 200 per IS 808:1989 has an overall depth of 200 mm, flange width of 100 mm, web thickness of 5.7 mm, and flange thickness of 10.8 mm. The cross-sectional area is 3,230 mm².
