MS vs GI Pipe Weight Difference — Zinc Coating Delta Explained

The MS vs GI pipe weight difference is real but modest — GI pipe weighs more than MS pipe of the same size because of the hot-dip zinc coating applied after manufacture. The base pipe dimensions are identical in both cases; what changes is the added zinc layer governed by IS:4736:1986. This distinction matters when you are calculating structural loads, vehicle payloads, or reconciling a GI pipe purchase order against an MS pipe weight chart. The table below quantifies the delta at every standard NB size.

Why GI Pipe Weighs More — The Zinc Coating Explained

GI pipe starts as a standard MS pipe manufactured to IS:1239 (Part 1):2004. After rolling and sizing, the pipe goes through a hot-dip galvanising bath where molten zinc bonds to the steel surface. IS:4736:1986 — the Indian Standard for hot-dip zinc coatings on MS pipe — specifies the minimum zinc mass that must be deposited on the pipe surface.

For IS:1239 pipe in the Medium and Heavy classes, the minimum zinc coating mass is 460 g/m² of pipe surface area. For Light class pipe, the minimum is 400 g/m². These values apply to the total external plus internal surface area.

How to Calculate the Zinc Coating Weight Addition

Formula for zinc mass addition per metre of pipe:

Zinc kg/m = Coating mass (kg/m²) × π × OD (m)

Coating mass

Minimum zinc deposit per IS:4736 — 0.460 kg/m² for Medium/Heavy class, 0.400 kg/m² for Light class. This covers the external surface; internal coating adds a comparable amount.

π × OD (m)

External circumference of the pipe in metres. OD is the outside diameter from IS:1239 in millimetres, divided by 1000.

Zinc kg/m

The weight of zinc coating per metre of pipe length, in kilograms.

For a practical estimate, the total zinc addition (external + internal surfaces) for Medium class pipe runs to approximately 0.20–0.35 kg/m depending on NB size, giving a weight increase of 3–7% over the base MS pipe weight. The comparison table below shows the calculated values at each standard NB size.

MS vs GI Pipe Weight Comparison Table — IS:1239 Medium Class

The table below compares MS pipe weight (per IS:1239) against the corresponding GI pipe weight (MS base + calculated zinc addition per IS:4736) for Medium Class pipe, the most commonly specified class in plumbing and structural applications. MS aur GI pipe ka weight difference har NB size ke liye clearly diya gaya hai.

MS base weights per IS:1239 (Part 1):2004. GI weight = MS weight + calculated zinc addition at 460 g/m² per IS:4736:1986 (external + internal surfaces combined estimate). Actual GI pipe weight may vary ±7.5% per IS:1852. Always verify with your supplier's test certificate.

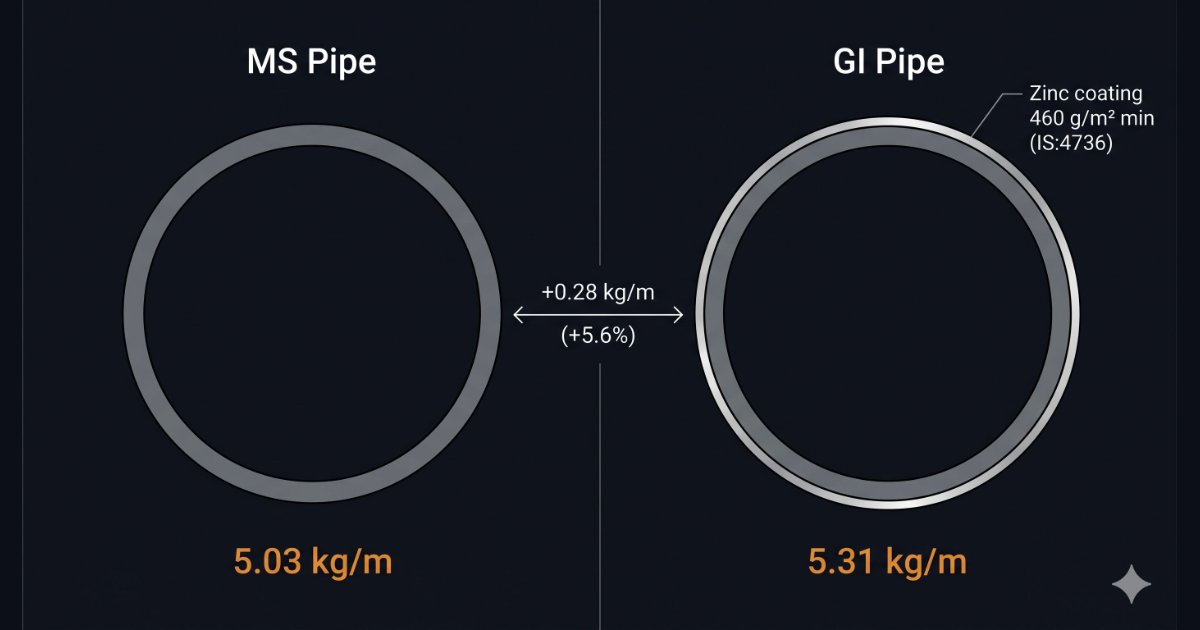

Worked Example — 50 NB Medium Class, 100-Metre Plumbing Run

A commercial building project requires a 100-metre run of 50 NB Medium Class pipe for a domestic water supply line. The structural engineer has asked for the total pipe weight to confirm the floor slab load. The project can use either MS pipe (later painted) or GI pipe. Here is the weight and cost comparison:

MS pipe (50 NB Medium, IS:1239):
Weight per metre = 5.03 kg/m
Total weight for 100 m = 5.03 × 100 = 503 kg

GI pipe (50 NB Medium, IS:1239 + IS:4736 zinc coat):
Weight per metre = 5.31 kg/m
Total weight for 100 m = 5.31 × 100 = 531 kg

Weight difference: 531 − 503 = 28 kg extra for GI — roughly the weight of an additional 5.3 metres of pipe. For a floor slab load calculation, this difference is negligible. However, for the purchase order, it has a direct cost implication.

Cost implication at ₹65/kg:
Extra zinc mass cost = 28 kg × ₹65 = ₹1,820 additional for the 100-metre run.
Note: GI pipe also commands a processing premium of ₹8–12/kg over MS pipe at the mill level, making the actual price difference larger than the weight difference alone suggests. Always compare GI pipe quotes on a per-kg basis against the IS:1239 base weight, not the galvanised weight.

For the base MS pipe weight per metre at any NB size and class, use our free Metal Weight Calculator — it covers all IS:1239 classes. A full IS:1239 reference table is also available in our MS Pipe Weight Per Metre article.

When Does the Weight Difference Actually Matter?

In most plumbing and structural applications, the 4–6% GI weight premium is irrelevant. The cases where it does matter are:

Vehicle payload calculations: A 100-piece load of 50 NB × 6 m Medium Class pipe weighs 503 × 6/100 × 100 = approximately 3,018 kg in MS and 3,186 kg in GI — a 168 kg difference that can push a loaded LCV over its rated GVW on a large order.

Reconciling supplier invoices: Some suppliers invoice GI pipe by actual weight (which includes the zinc), while others invoice by the theoretical MS base weight. Knowing the IS:4736 zinc addition lets you verify which basis is being used and catch discrepancies.

Structural dead load calculations: On overhead pipe racks where the structural frame is designed to a tight load budget, using the GI weight from the table above rather than the MS weight prevents under-designing the support brackets.

MS aur GI pipe ka weight difference in daily fabrication quotes generally ignored kiya ja sakta hai — lekin above scenarios mein yeh difference material hai.
