ISA 80×60×6 Weight, Dimensions and IS 808 Properties
ISA 80×60×6 weighs 6.5 kg per metre as per IS 808:1989.
- One 6-metre length weighs 39.0 kg · one 12-metre length weighs 78.0 kg

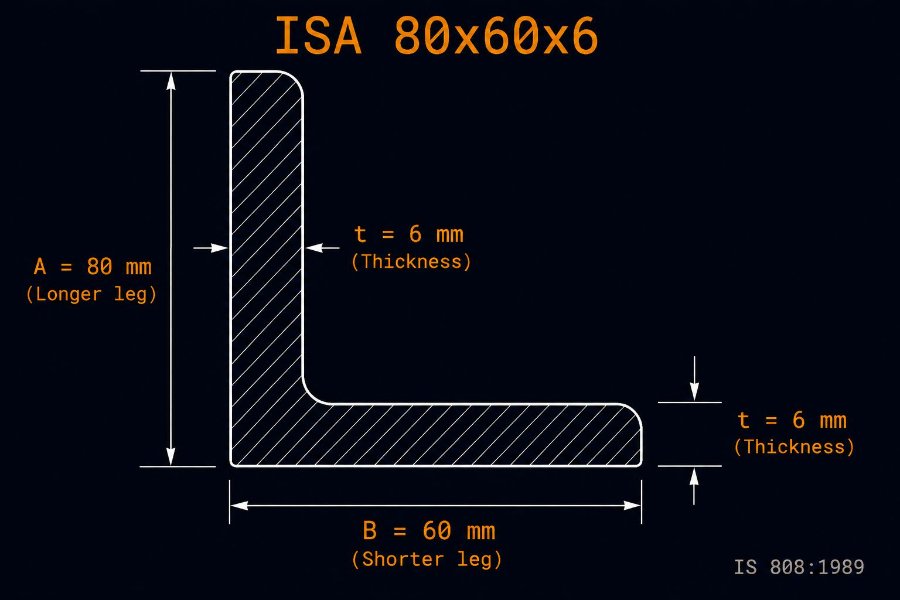

- Long leg 80 mm · short leg 60 mm · thickness 6 mm · area 8.22 cm²
- Maximum principal moment of inertia Iuu = 63.44 cm⁴
ISA 80×60×6 is a standard unequal-leg angle in IS 808:1989. At 6.5 kg/m with a 80 mm long leg and 60 mm short leg, it is used for medium structural bracing, beam-to-column connection angles, staircase stringers, and secondary framing connections where the wider 60 mm short leg improves bolt-gauge flexibility.
ISA 80×60×6 Weight Calculator
Enter the total length in metres to calculate weight.
ISA 80×60×6 — Weight Calculator
IS 808:1989 Dimensions and Sectional Properties
| Property | Symbol | Unit | Value |
|---|---|---|---|
| Long leg | A | mm | 80 |
| Short leg | B | mm | 60 |
| Thickness | t | mm | 6 |
| Cross-sectional area | A | cm² | 8.22 |
| Mass per metre | — | kg/m | 6.5 |
| Centroid from back of long leg | Cxx | cm | 1.9 |
| Centroid from back of short leg | Cyy | cm | 1.2 |
| Moment of inertia (x–x) | Ixx | cm⁴ | 56.3 |
| Moment of inertia (y–y) | Iyy | cm⁴ | 18.4 |
| Moment of inertia (u–u, max principal) | Iuu | cm⁴ | 63.44 |
| Moment of inertia (v–v, min principal) | Ivv | cm⁴ | 11.26 |
| Elastic section modulus (x–x) | Zxx | cm³ | 10.14 |
| Elastic section modulus (y–y) | Zyy | cm³ | 4.35 |
| Radius of gyration (u–u) | ruu | cm | 2.78 |
| Radius of gyration (v–v) | rvv | cm | 1.17 |
| Tangent of principal axis angle | tan α | — | 0.44 |
Dimensions and properties as per IS 808:1989 (reaffirmed 2021). x–x axis is parallel to the long leg; y–y axis is parallel to the short leg; u–u is the maximum principal axis at angle α to x–x. Mass tolerance: ±3% per piece per IS 808.
Common Applications of ISA 80×60×6
ISA 80×60×6 is used for medium structural bracing, beam-to-column connection angles, staircase stringers, and secondary framing connections where the wider 60 mm short leg improves bolt-gauge flexibility. General steel merchants and angle stockists carry this size in IS 2062 E250 grade in 6 m and 12 m lengths. JSPL, SAIL, and RINL (Vizag Steel) all roll this designation to IS 808:1989 as standard stock.
Worked Example
A fabricator in Hyderabad needs 24 beam-to-column connection angles on a mezzanine frame using ISA 80×60×6, each 300 mm long. Total length = 24 × 0.3 = 7.2 m. Weight = 7.2 × 6.5 = 46.8 kg. At ₹63,000 per tonne (Hyderabad, May 2026), material cost is approximately ₹2,948 before cutting charges.
Related ISA Unequal Angle Sections
Compare with adjacent sizes: ISA 75×50×8 (7.4 kg/m) · ISA 80×60×8 (8.5 kg/m). For all ISA unequal angles see the Section Reference Library →
Frequently Asked Questions
What is the weight of ISA 80×60×6 per metre?
ISA 80×60×6 weighs 6.5 kg per metre as specified in IS 808:1989. For a standard 6-metre length, the total weight is 39.0 kg. For a 12-metre length, total weight is 78.0 kg.
ISA 80×60×6 ka weight per meter kitna hota hai?
IS 808:1989 standard ke according, ISA 80×60×6 ka weight 6.5 kg/m hota hai. 6 metre ki ek length ka total weight 39.0 kg hoga. Zyada accurate calculation ke liye upar diya gaya calculator use karein.
What are the dimensions of ISA 80×60×6?
ISA 80×60×6 per IS 808:1989 has a long leg of 80 mm, short leg of 60 mm, thickness of 6 mm, and cross-sectional area of 8.22 cm².
