ISMB 600 Weight, Dimensions and IS 808 Properties
ISMB 600 weighs 122.6 kg per metre as per IS 808:1989.
- One 6-metre length weighs 735.6 kg · one 12-metre length weighs 1,471.2 kg
- Overall depth 600 mm · flange width 210 mm · web thickness 12.0 mm
- Cross-sectional area 15,620 mm² · Ixx = 91,813.0 cm⁴
ISMB 600 is the largest and heaviest section in the standard ISMB range per IS 808:1989. At 122.6 kg/m with a 210 mm flange, it is used exclusively in heavy industrial structures — major crane bays, long-span bridge girders, and transfer beams carrying very high loads. All handling requires crane equipment.
ISMB 600 Weight Calculator
Enter the total length in metres to calculate weight.
ISMB 600 — Weight Calculator

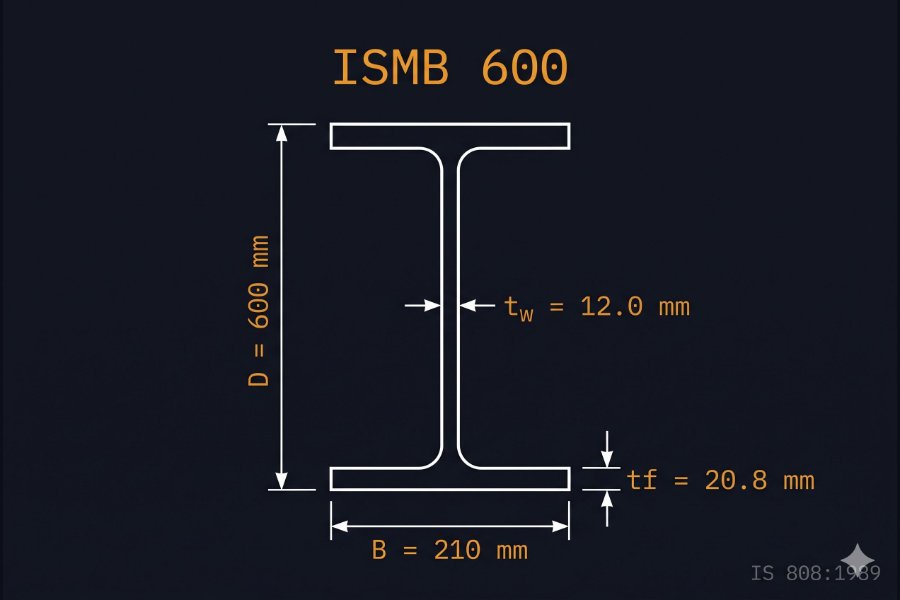

IS 808:1989 Dimensions and Sectional Properties
| Property | Symbol | Unit | Value |
|---|---|---|---|
| Overall depth | D | mm | 600 |
| Flange width | B | mm | 210 |
| Web thickness | tw | mm | 12.0 |
| Flange thickness | tf | mm | 20.8 |
| Cross-sectional area | A | mm² | 15,620 |
| Mass per metre | — | kg/m | 122.6 |
| Moment of inertia (x–x) | Ixx | cm⁴ | 91,813.0 |
| Moment of inertia (y–y) | Iyy | cm⁴ | 2,651.0 |
| Elastic section modulus (x–x) | Zxx | cm³ | 3,060.4 |
| Elastic section modulus (y–y) | Zyy | cm³ | 252.5 |
| Radius of gyration (x–x) | rxx | cm | 24.25 |
| Radius of gyration (y–y) | ryy | cm | 4.12 |
Dimensions and properties as per IS 808:1989 (reaffirmed 2021). Mass tolerance: ±2.5% per piece per IS 808.
Common Applications of ISMB 600
ISMB 600 is specified for the heaviest industrial applications — crane runway girders above 50-tonne capacity, major transfer beams in multi-storey frames, and long-span bridge girders. Its Ixx of 91,813 cm⁴ is the highest in the ISMB range. SAIL Bhilai is the primary supplier; ISMB 600 is produced to order in IS 2062 E350 and E410 grades and is not held as regular yard stock.
Worked Example
A heavy engineering plant in Jamshedpur requires 2 crane runway girders of ISMB 600 each 12.0 m long for a 50-tonne EOT crane. Total length = 2 × 12.0 = 24 m. Weight = 24 × 122.6 = 2,942.4 kg (2.942 tonnes). At ₹58,000 per tonne (May 2026), estimated material cost is approximately ₹1,70,660.
Related ISMB Sections
Compare with adjacent sizes: ISMB 550 (103.7 kg/m) · Section Reference Library (no larger standard ISMB). For all ISMB sizes see the Section Reference Library →
Frequently Asked Questions
What is the weight of ISMB 600 per metre?
ISMB 600 weighs 122.6 kg per metre as specified in IS 808:1989. For a standard 6-metre length, the total weight is 735.6 kg. For a 12-metre length, total weight is 1,471.2 kg.
ISMB 600 ka weight per meter kitna hota hai?
IS 808:1989 standard ke according, ISMB 600 ka weight 122.6 kg/m hota hai. 6 metre ki ek length ka total weight 735.6 kg hoga. Zyada accurate calculation ke liye upar diya gaya calculator use karein.
What are the dimensions of ISMB 600?
ISMB 600 per IS 808:1989 has an overall depth of 600 mm, flange width of 210 mm, web thickness of 12.0 mm, and flange thickness of 20.8 mm. The cross-sectional area is 15,620 mm².
