ISA 130×130×10 Weight, Dimensions and IS 808 Properties
ISA 130×130×10 weighs 19.6 kg per metre as per IS 808:1989.
- One 6-metre length weighs 117.6 kg · one 12-metre length weighs 235.2 kg
- Leg 130 mm × thickness 10 mm · root radius 13.0 mm
- Cross-sectional area 24.99 cm² · Iuu = 366.0 cm⁴
ISA 130×130×10 is a large structural equal-leg angle in IS 808:1989. At 19.6 kg/m with a 130 mm leg it is used for primary chord members in heavy trusses, back-to-back compound column sections in multi-storey structures, and primary bracing in large industrial plants.
ISA 130×130×10 Weight Calculator
Enter the total length in metres to calculate weight.
ISA 130×130×10 — Weight Calculator

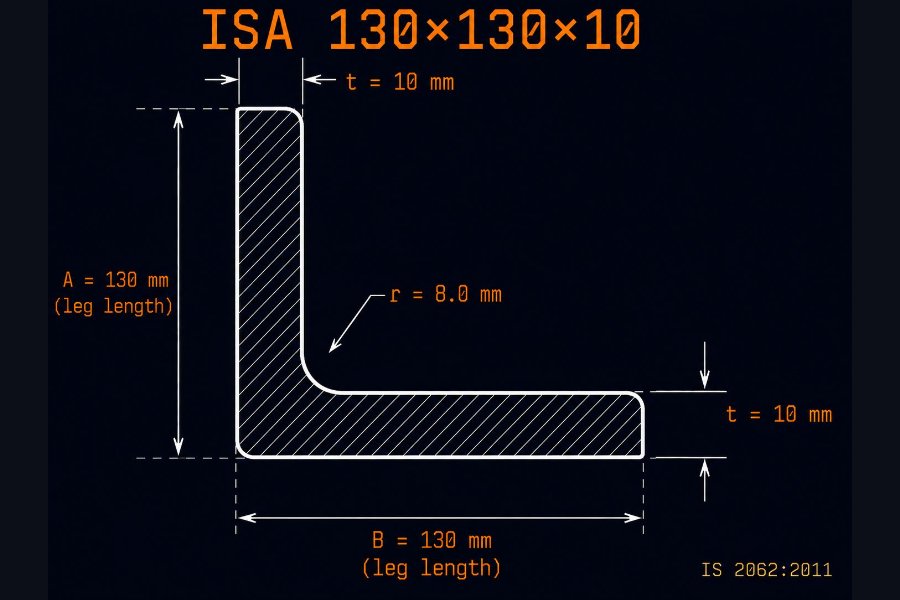

IS 808:1989 Dimensions and Sectional Properties
| Property | Symbol | Unit | Value |
|---|---|---|---|
| Leg length | A | mm | 130 |
| Thickness | t | mm | 10 |
| Root radius | r1 | mm | 13.0 |
| Cross-sectional area | A | cm² | 24.99 |
| Mass per metre | — | kg/m | 19.6 |
| Centroid distance (Cxx = Cyy) | Cxx | cm | 3.07 |
| Moment of inertia (u–u, max) | Iuu | cm⁴ | 366.0 |
| Moment of inertia (v–v, min) | Ivv | cm⁴ | 95.13 |
| Elastic section modulus (u–u) | Zuu | cm³ | 40.25 |
| Radius of gyration (u–u) | ruu | cm | 3.83 |
| Radius of gyration (v–v) | rvv | cm | 1.95 |
Dimensions and properties as per IS 808:1989 (Reaffirmed 2001). Mass tolerance: ±3% per piece as per IS 808. u–u is the major principal axis at 45° to both legs; v–v is the minor principal axis. Zvv is not published in IS 808:1989 for angle sections.
Common Applications of ISA 130×130×10
ISA 130×130×10 is used for primary chord members in 26–32 m span heavy trusses, back-to-back compound column sections in multi-storey industrial structures, primary heavy wind bracing members, and large gusset plate bolted connections. Stocked by JSPL and Tata Steel.
Worked Example
A structural engineer in Hyderabad specifies ISA 130×130×10 for 10 primary chord members, each 6 m long, for a 30 m span steel plant building truss. Total length = 10 × 6 = 60 m. Weight = 60 × 19.6 = 1,176 kg (1.176 tonnes). At ₹62,000 per tonne (Hyderabad, May 2026), material cost is approximately ₹72,912.
