ISA 60×40×5 Weight, Dimensions and IS 808 Properties
ISA 60×40×5 weighs 3.8 kg per metre as per IS 808:1989.
- One 6-metre length weighs 22.8 kg · one 12-metre length weighs 45.6 kg
- Long leg 60 mm · short leg 40 mm · thickness 5 mm · area 4.79 cm²
- Maximum principal moment of inertia Iuu = 20.47 cm⁴
ISA 60×40×5 is a standard unequal-leg angle in IS 808:1989. At 3.8 kg/m with a 60 mm long leg and 40 mm short leg, it is used for purlin and girt cleats in light-to-medium shed structures, secondary beam seating connections, and diagonal bracing in light frames.
ISA 60×40×5 Weight Calculator
Enter the total length in metres to calculate weight.
ISA 60×40×5 — Weight Calculator

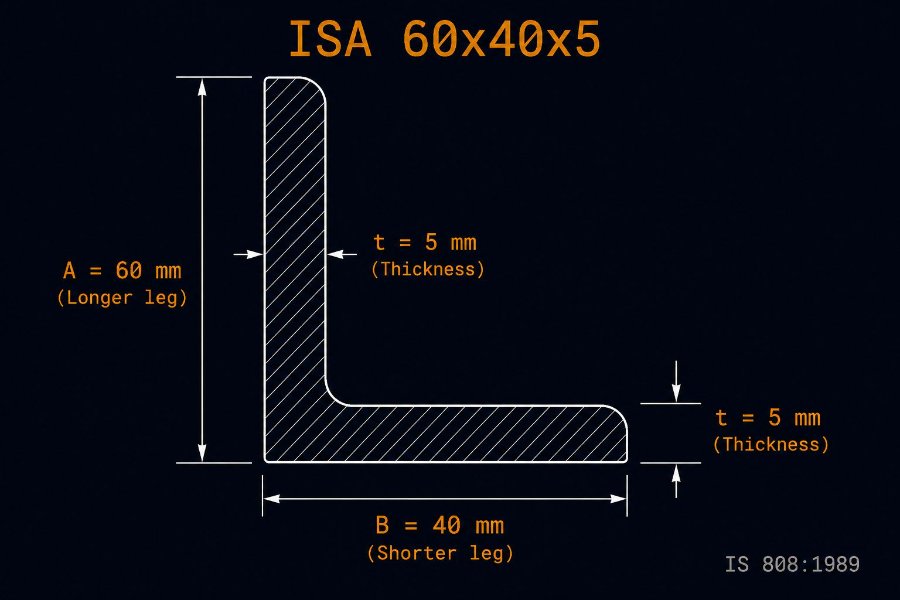

IS 808:1989 Dimensions and Sectional Properties
| Property | Symbol | Unit | Value |
|---|---|---|---|
| Long leg | A | mm | 60 |
| Short leg | B | mm | 40 |
| Thickness | t | mm | 5 |
| Cross-sectional area | A | cm² | 4.79 |
| Mass per metre | — | kg/m | 3.8 |
| Centroid from back of long leg | Cxx | cm | 1.51 |
| Centroid from back of short leg | Cyy | cm | 0.81 |
| Moment of inertia (x–x) | Ixx | cm⁴ | 18.6 |
| Moment of inertia (y–y) | Iyy | cm⁴ | 4.41 |
| Moment of inertia (u–u, max principal) | Iuu | cm⁴ | 20.47 |
| Moment of inertia (v–v, min principal) | Ivv | cm⁴ | 2.54 |
| Elastic section modulus (x–x) | Zxx | cm³ | 4.46 |
| Elastic section modulus (y–y) | Zyy | cm³ | 1.6 |
| Radius of gyration (u–u) | ruu | cm | 2.07 |
| Radius of gyration (v–v) | rvv | cm | 0.73 |
| Tangent of principal axis angle | tan α | — | 0.338 |
Dimensions and properties as per IS 808:1989 (reaffirmed 2021). x–x axis is parallel to the long leg; y–y axis is parallel to the short leg; u–u is the maximum principal axis at angle α to x–x. Mass tolerance: ±3% per piece per IS 808.
Common Applications of ISA 60×40×5
ISA 60×40×5 is used for purlin and girt cleats in light-to-medium shed structures, secondary beam seating connections, and diagonal bracing in light frames. General steel merchants and angle stockists carry this size in IS 2062 E250 grade in 6 m and 12 m lengths. JSPL, SAIL, and RINL (Vizag Steel) all roll this designation to IS 808:1989 as standard stock.
Worked Example
A fabricator in Surat needs 80 purlin cleats for a 30 m × 15 m shed using ISA 60×40×5, each 150 mm long. Total length = 80 × 0.15 = 12.0 m. Weight = 12.0 × 3.8 = 45.6 kg. At ₹63,000 per tonne (Surat, May 2026), material cost is approximately ₹2,872 before cutting charges.
