ISHB 250 Weight, Dimensions and IS 808 Properties
ISHB 250 weighs 54.7 kg per metre as per IS 808:1989.
- One 6-metre length weighs 328.2 kg · one 12-metre length weighs 656.4 kg
- Overall depth 250 mm · flange width 250 mm · web thickness 6.9 mm
- Cross-sectional area 6,971 mm² · Ixx = 7,983.9 cm⁴
ISHB 250 is the largest equal-flange ISHB section in IS 808:1989. At 54.7 kg/m with equal depth and flange width of 250 mm, it is widely used as a primary column in medium industrial structures. Above ISHB 250, the flange width remains fixed at 250 mm while the depth increases — so ISHB 250 represents a transition point in the ISHB range where the section geometry shifts from square to rectangular.
ISHB 250 Weight Calculator
Enter the total length in metres to calculate weight.
ISHB 250 — Weight Calculator

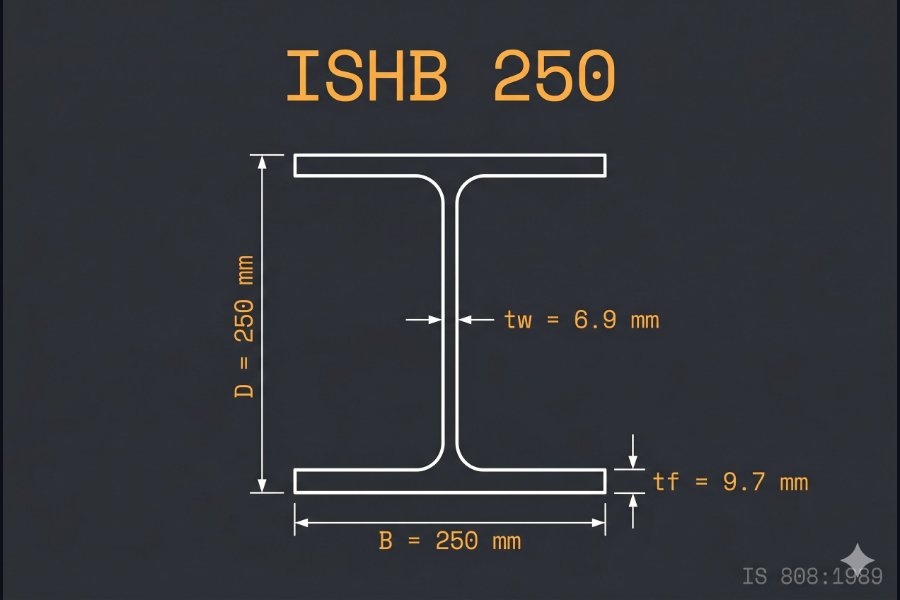

IS 808:1989 Dimensions and Sectional Properties
| Property | Symbol | Unit | Value |
|---|---|---|---|
| Overall depth | D | mm | 250 |
| Flange width | B | mm | 250 |
| Web thickness | tw | mm | 6.9 |
| Flange thickness | tf | mm | 9.7 |
| Cross-sectional area | A | mm² | 6,971 |
| Mass per metre | — | kg/m | 54.7 |
| Moment of inertia (x–x) | Ixx | cm⁴ | 7,983.9 |
| Moment of inertia (y–y) | Iyy | cm⁴ | 2,011.7 |
| Elastic section modulus (x–x) | Zxx | cm³ | 638.7 |
| Elastic section modulus (y–y) | Zyy | cm³ | 160.9 |
| Radius of gyration (x–x) | rxx | cm | 10.70 |
| Radius of gyration (y–y) | ryy | cm | 5.37 |
Dimensions and properties as per IS 808:1989 (reaffirmed 2021). Mass tolerance: ±2.5% per piece per IS 808.
Common Applications of ISHB 250
ISHB 250 is used as primary columns in medium industrial buildings up to 8 m height, multi-storey light steel frames, heavy mezzanine structures, and as column sections in portal frame buildings carrying significant axial load. Its 250 × 250 mm equal profile gives a well-balanced r_xx/r_yy ratio of approximately 2.0 — good biaxial column performance. SAIL Bhilai produces ISHB 250 in IS 2062 E250 and E350 grade as standard stock; also available from major structural steel stockists across India.
Worked Example
A structural engineer in Mumbai specifies 24 columns of ISHB 250, each 6 m tall, for a multi-bay medium industrial building. Total length = 24 × 6 = 144 m. Weight = 144 × 54.7 = 7,876.8 kg (7.877 tonnes). At a market rate of ₹63,500 per tonne (Mumbai, May 2026), the material cost is approximately ₹5,00,180 before base plates and connections.
Related ISHB Sections
Compare with adjacent sizes: ISHB 225 (49.3 kg/m) · ISHB 300 (67.1 kg/m). Note: ISHB 250 is the largest ISHB with equal depth and flange width. For all ISHB sizes see the Section Reference Library →
Frequently Asked Questions
What is the weight of ISHB 250 per metre?
ISHB 250 weighs 54.7 kg per metre as specified in IS 808:1989. For a standard 6-metre length, the total weight is 328.2 kg. For a 12-metre length, total weight is 656.4 kg.
ISHB 250 ka weight per meter kitna hota hai?
IS 808:1989 standard ke according, ISHB 250 ka weight 54.7 kg/m hota hai. 6 metre ki ek length ka total weight 328.2 kg hoga. Zyada accurate calculation ke liye upar diya gaya calculator use karein.
What are the dimensions of ISHB 250?
ISHB 250 per IS 808:1989 has an overall depth of 250 mm, flange width of 250 mm, web thickness of 6.9 mm, and flange thickness of 9.7 mm. The cross-sectional area is 6,971 mm².
