ISMC 150 Weight, Dimensions and IS 808 Properties
ISMC 150 weighs 16.8 kg per metre as per IS 808:1989.
- One 6-metre length weighs 100.8 kg · one 12-metre length weighs 201.6 kg
- Web height 150 mm · flange width 75 mm · web thickness 5.4 mm
- Cross-sectional area 21.30 cm² · Ixx = 779.7 cm⁴
ISMC 150 is one of the most commonly specified and stocked ISMC sizes in India. At 16.8 kg/m with a 150 mm web and 75 mm flange, it is used for purlins and girts in industrial sheds, floor channels, stair stringers, and secondary framing in a wide range of structural applications.
ISMC 150 Weight Calculator
Enter the total length in metres to calculate weight.
ISMC 150 — Weight Calculator

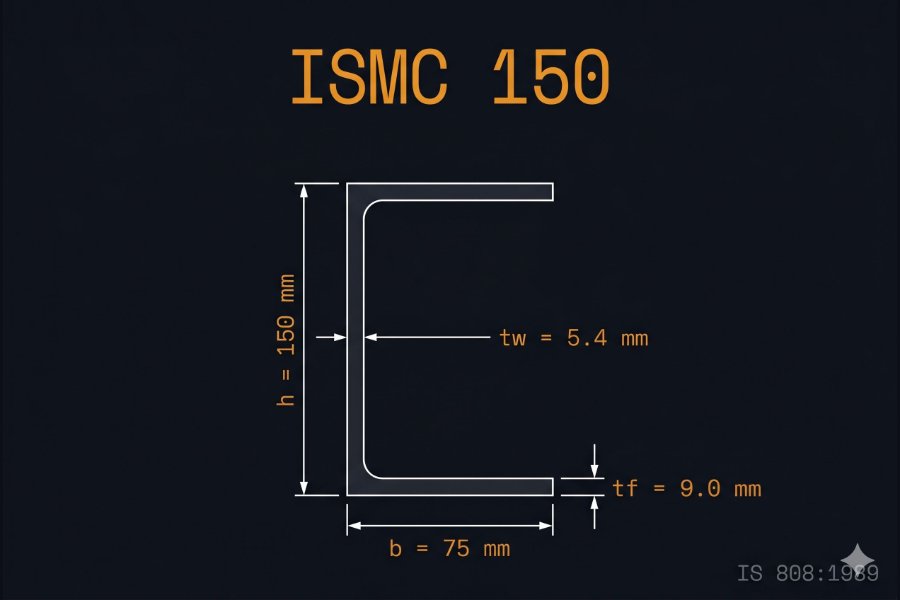

IS 808:1989 Dimensions and Sectional Properties
| Property | Symbol | Unit | Value |
|---|---|---|---|
| Web height | h | mm | 150 |
| Flange width | b | mm | 75 |
| Web thickness | tw | mm | 5.4 |
| Flange thickness | tf | mm | 9.0 |
| Cross-sectional area | A | cm² | 21.30 |
| Mass per metre | — | kg/m | 16.8 |
| Moment of inertia (x–x) | Ixx | cm⁴ | 779.7 |
| Moment of inertia (y–y) | Iyy | cm⁴ | 90.0 |
| Elastic section modulus (x–x) | Zxx | cm³ | 104.0 |
| Elastic section modulus (y–y) | Zyy | cm³ | 16.9 |
| Radius of gyration (x–x) | rxx | cm | 6.05 |
| Radius of gyration (y–y) | ryy | cm | 2.06 |
Dimensions and properties as per IS 808:1989 (reaffirmed 2021). Mass tolerance: ±2.5% per piece per IS 808.
Common Applications of ISMC 150
ISMC 150 is among the most stocked C-channel sizes in Indian steel yards. It is specified for purlins and girts in portal frame buildings up to 15 m span, intermediate floor beams in light mezzanines, stair stringers in multi-floor industrial buildings, lintel beams over openings up to 3.5 m, and running tracks for small sliding gates. SAIL, JSW Steel, and Vizag Steel all produce ISMC 150 in IS 2062 E250 grade.
Worked Example
A contractor in Mumbai needs 20 purlins of ISMC 150, each 6 m long, for a light industrial shed roof. Total length = 20 × 6 = 120 m. Weight = 120 × 16.8 = 2,016 kg (2.016 tonnes). At a market rate of ₹57,800 per tonne (Mumbai, May 2026), the material cost is approximately ₹1,16,525 before fabrication.
Related ISMC Sections
Compare with adjacent sizes: ISMC 125 (13.1 kg/m) · ISMC 175 (19.6 kg/m). For all ISMC sizes see the Section Reference Library →
Frequently Asked Questions
What is the weight of ISMC 150 per metre?
ISMC 150 weighs 16.8 kg per metre as specified in IS 808:1989. For a standard 6-metre length, the total weight is 100.8 kg. For a 12-metre length, total weight is 201.6 kg.
ISMC 150 ka weight per meter kitna hota hai?
IS 808:1989 standard ke according, ISMC 150 ka weight 16.8 kg/m hota hai. 6 metre ki ek length ka total weight 100.8 kg hoga. Zyada accurate calculation ke liye upar diya gaya calculator use karein.
What are the dimensions of ISMC 150?
ISMC 150 per IS 808:1989 has a web height of 150 mm, flange width of 75 mm, web thickness of 5.4 mm, and flange thickness of 9.0 mm. The cross-sectional area is 21.30 cm².
